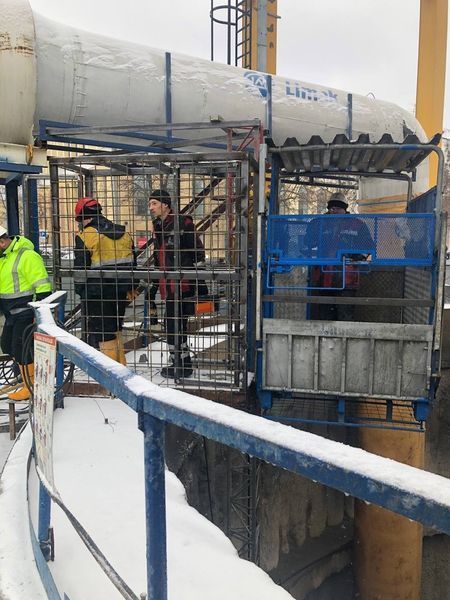

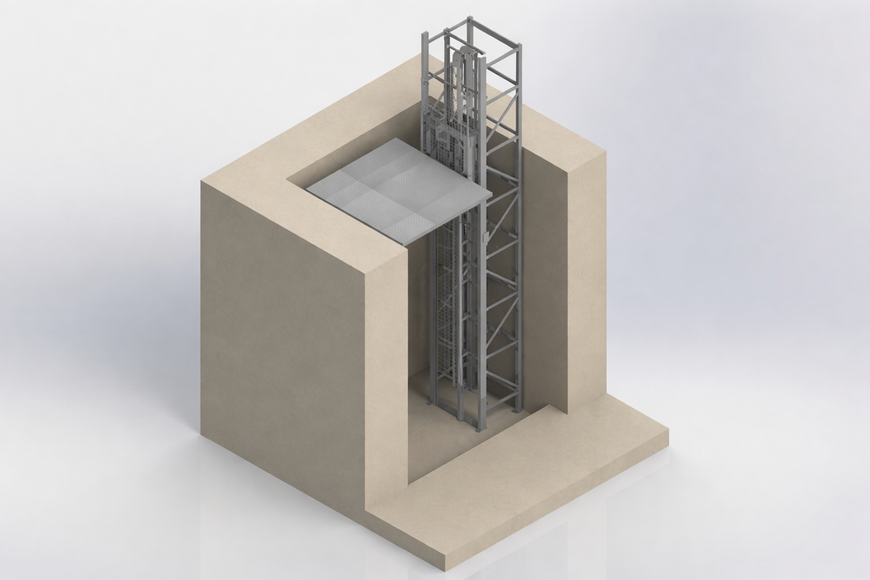

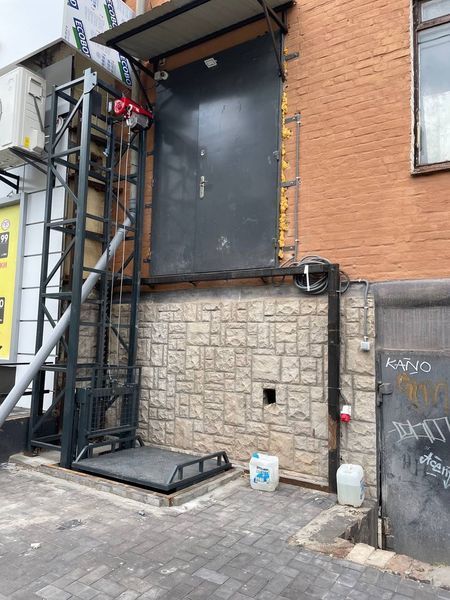

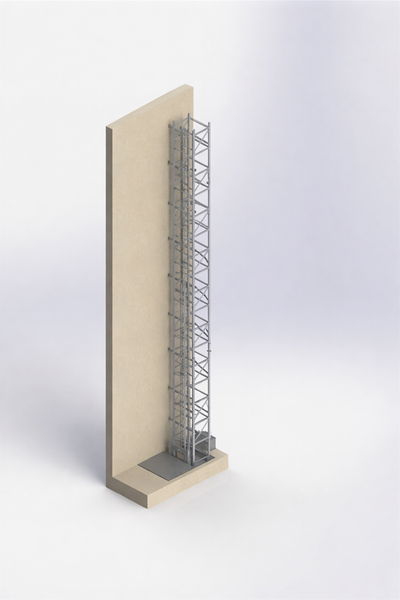

ASPAR M2H 3000 is an attachable twin-mast freight lift with a modular mast for moving loads between levels. Its load capacity is 3,000 kg, with a maximum lift height of up to 36 m.
Technical characteristics
| Load capacity | 3000 kg |
| Maximum lift height | up to 36 m |
| Platform size | according to the technical specification |
| Power supply | 380 V |
| Control | 24 V |
| Number of stops | up to 10 |
Site- or configuration-dependent values are selected for the specific project and recorded in the technical specification.
When to consider this model

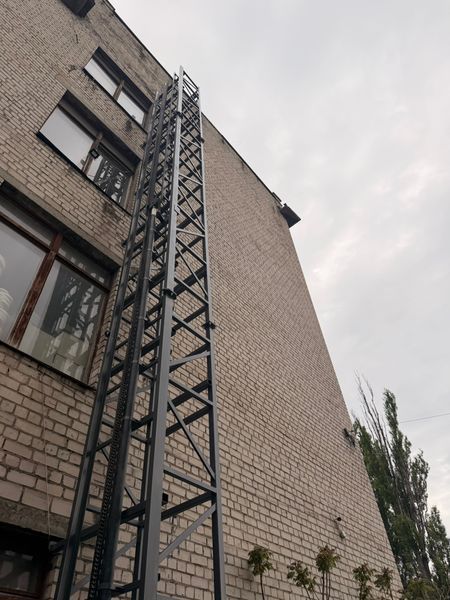

Consider the twin-mast model for construction, warehouse and industrial sites that need a larger platform or load capacity and allow the masts to be fixed to a facade or load-bearing structure.
Configuration and options
Platform enclosure or pass-through execution, a frequency inverter, automatic doors, enlarged dimensions and additional stops are configuration options. The safety system and each option are selected for the specific project.
What to provide for calculation
the maximum weight, dimensions and type of load; required lift height and number of stops; preferred platform size and loading directions; a plan of the installation area and available load-bearing structures; operating conditions, duty cycle and available power supply.
Related solutions and next step
For implementation context, see the freight-lift project example, warehouse and logistics solutions and manufacturing and workshop solutions. Installation and commissioning are agreed for the specific site; see the installation and dismantling service and freight-lift selection guidance. Send the input data through the contact page to select the configuration.
