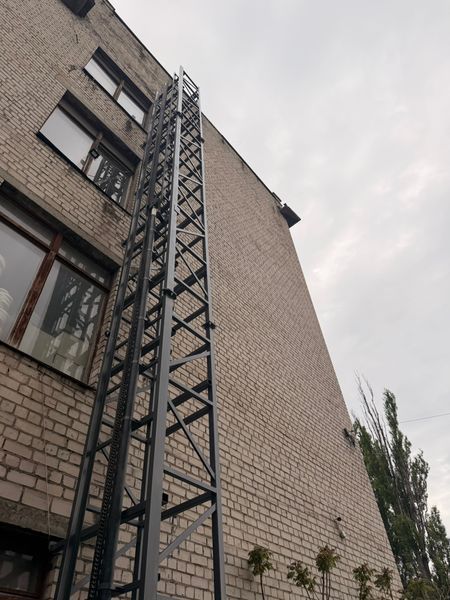

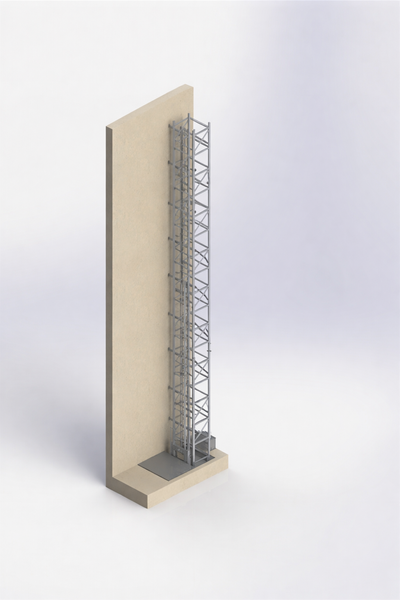

ASPAR MH 1000 is an attachable single-mast freight lift with a modular mast for moving loads between levels. It has a 1000 kg load capacity and a lift height of up to 36 m.
Platform size, number of stops and configuration are selected according to the load parameters and site conditions.
When to consider this model
Consider this model for construction, warehouse and industrial sites where the mast can be fixed to a facade or load-bearing structure and a complete shaft enclosure is not required.
Configuration and options
Platform enclosure or pass-through execution, a frequency inverter, automatic doors, larger dimensions and additional stops are available depending on the configuration. The safety system and additional options are selected for the site requirements.
What to provide for calculation
the maximum weight, dimensions and type of load; required lift height and number of stops; preferred platform size and loading directions; a plan of the installation area and available load-bearing structures; operating conditions, duty cycle and available power supply.
Related solutions and next step
See the freight-lift project example, warehouse and logistics solutions and manufacturing and workshop solutions. For planning the work, see the installation and dismantling service and freight-lift selection guidance. To select a configuration, send the input data through the contact page.
