1,000 kg Freight Platform for Pallets in Kamianets-Podilskyi

COMPLETED PROJECT • KAMIANETS-PODILSKYI

1,000 kg freight platform for pallets

ASPAR designed, manufactured and installed an electromechanical freight platform for pallets: 1,000 kg rated load, 3,200 mm lift, 1,300 × 1,000 mm platform and aluminium panel cladding.

1 000 кгrated load

3 200 ммlifting height

1 300 × 1 000 ммplatform size

Electromechanicaldrive

PROJECT TASK

Project task

The site required a permanent vertical route for palletised loads between working levels. Manual carrying or temporary handling equipment would not suit a repeated load-handling operation. The confirmed inputs were a one-tonne rated load, the working footprint of a pallet and a 3,200 mm level difference.

The task was therefore to integrate a platform into the actual installation space, rather than describe a generic stock product.

Operating and installation conditions

The platform serves palletised loads, so the working area, loading and unloading levels, and practical access for the pallet are central to the engineering arrangement. This project confirms a 1,300 × 1,000 mm platform and a 3,200 mm lift. No unsupported SKU, transmission type, shaft specification, speed, number of stops or power-supply claim is made.

ASPAR ENGINEERING SOLUTION

ASPAR engineering solution

ASPAR delivered an electromechanical 1,000 kg freight platform for pallets. The drive provides vertical movement between the required levels, while the 1,300 × 1,000 mm working area addresses the confirmed pallet-handling task. The 3,200 mm lift connects the project levels.

Aluminium panel cladding is part of the real completed execution visible in the project media. Together with the platform and guarding elements, it forms a fixed internal freight route.

MANUFACTURE AND INSTALLATION

Manufacturing and installation

ASPAR designed, manufactured and installed the equipment in Kamianets-Podilskyi. The platform was integrated into the designated space in line with the working levels and load geometry. The photo report shows the installed equipment, working platform, guides, guarding and aluminium cladding.

During installation, the platform position is aligned with the pallet receiving and dispatch areas so that the route remains repeatable in daily use. This Case records only the owner-confirmed scope: ASPAR manufactured and installed an electromechanical freight platform with the stated parameters.

TECHNICAL DATA

Technical data

Equipment	Freight platform for pallets
Application	Vertical movement of palletised loads
Drive	Electromechanical
Rated load	1,000 kg
Lift height	3,200 mm
Platform	1,300 × 1,000 mm
Cladding	Aluminium panel cladding
Location	Kamianets-Podilskyi

HOW IT WORKS

How it works

A pallet is placed within the platform working area. The electromechanical drive then moves the platform between levels through the project lift height. At the destination level the load can be transferred to the next operation. This provides a repeatable mechanised route instead of manual handling between levels.

Construction and pallet handling

The confirmed characteristics of this completed solution are the 1,000 kg capacity, 1,300 × 1,000 mm platform, electromechanical drive and aluminium panel cladding. The platform area supports the specified pallet-load format. A new project is calculated separately from the load mass and dimensions, lift height and actual installation conditions.

RESULT

Result

The site now has a fixed ASPAR electromechanical freight platform for pallets up to 1,000 kg, lifting through 3,200 mm. ASPAR designed, manufactured and installed the solution as an integrated part of the object.

REAL PHOTOS

Real project photos

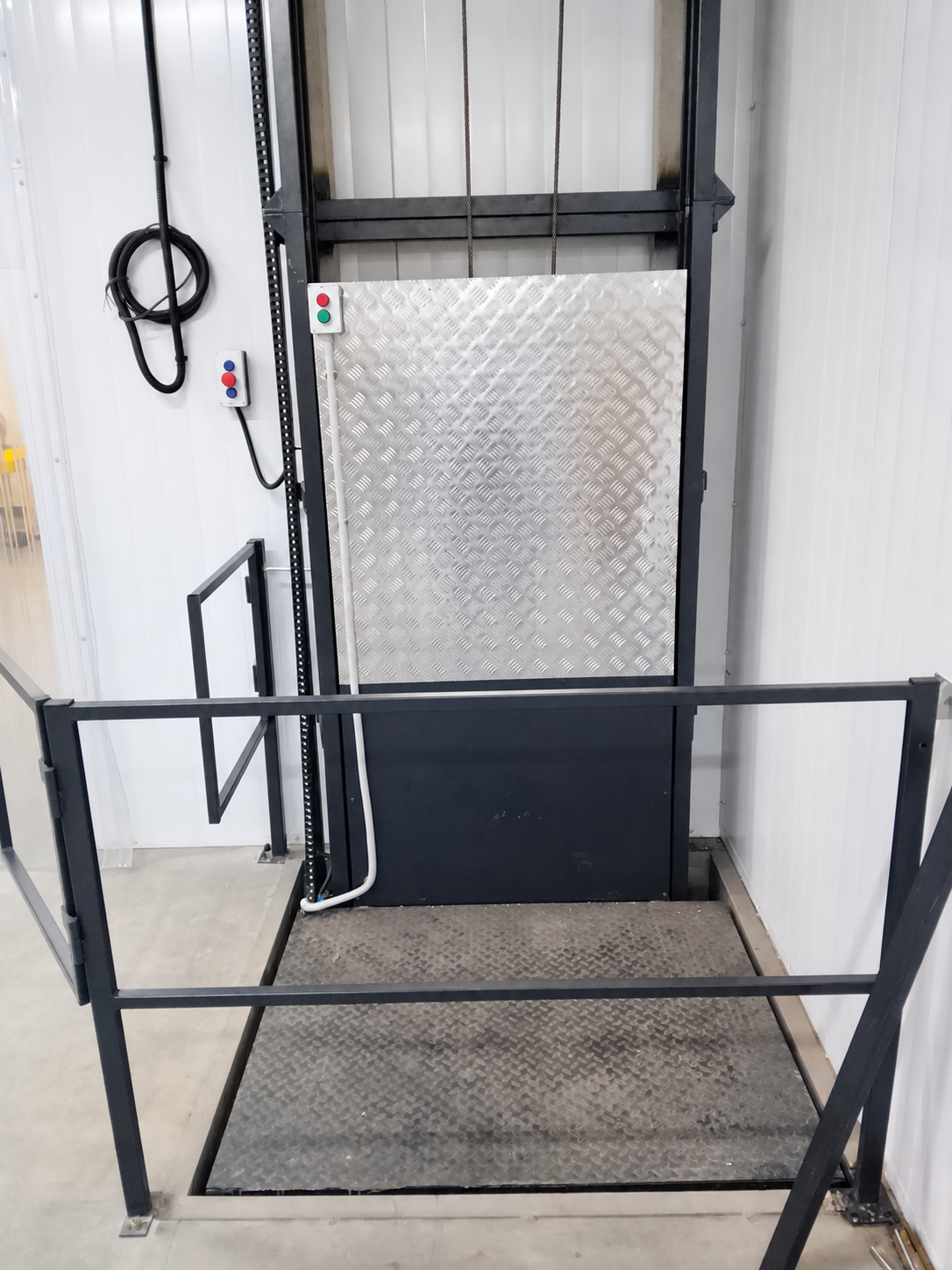

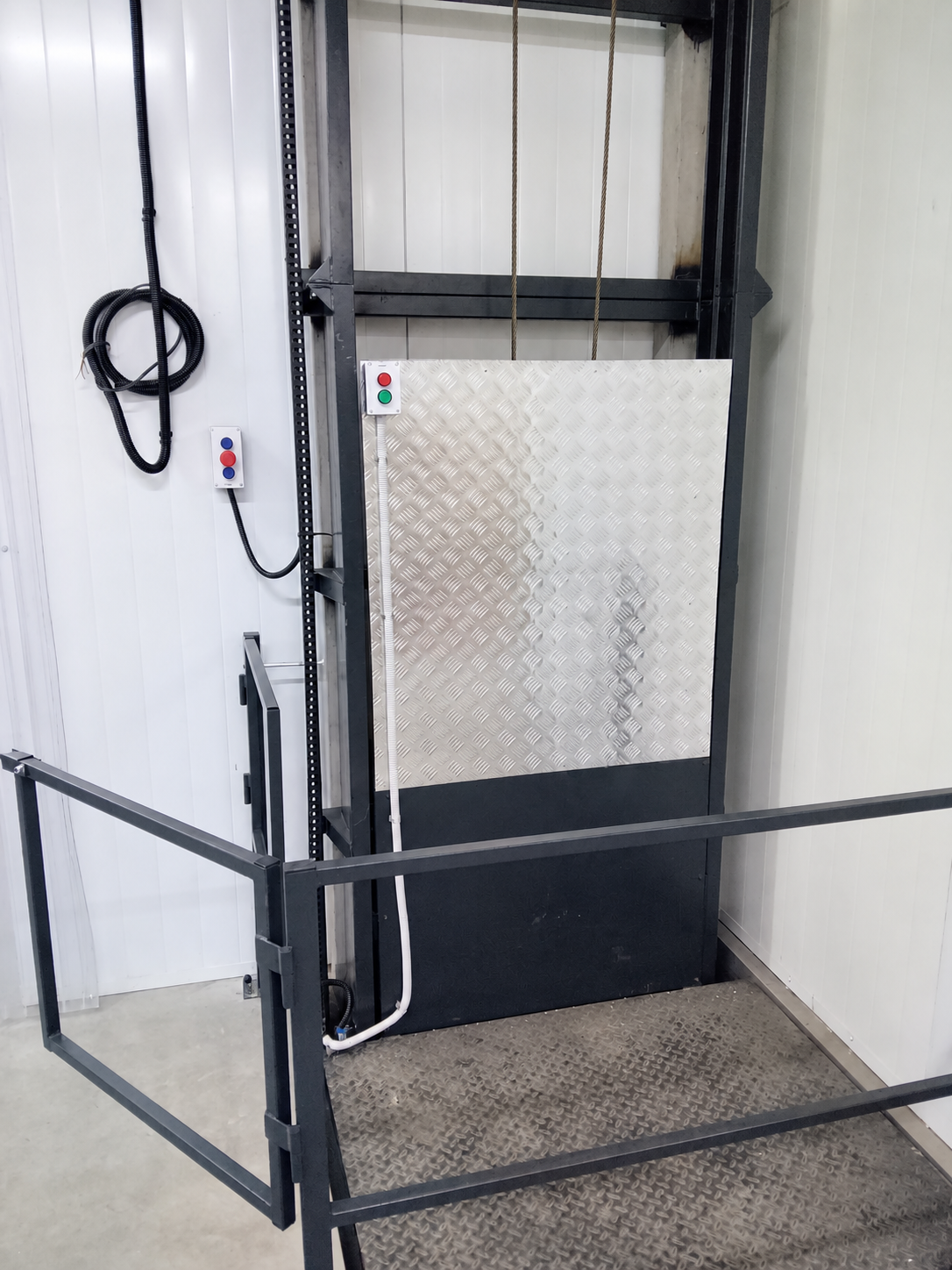

The gallery shows the installed platform, working area, guarding and aluminium cladding. The owner-supplied source images have only been cleaned of camera watermarks; the equipment and project details were not altered.

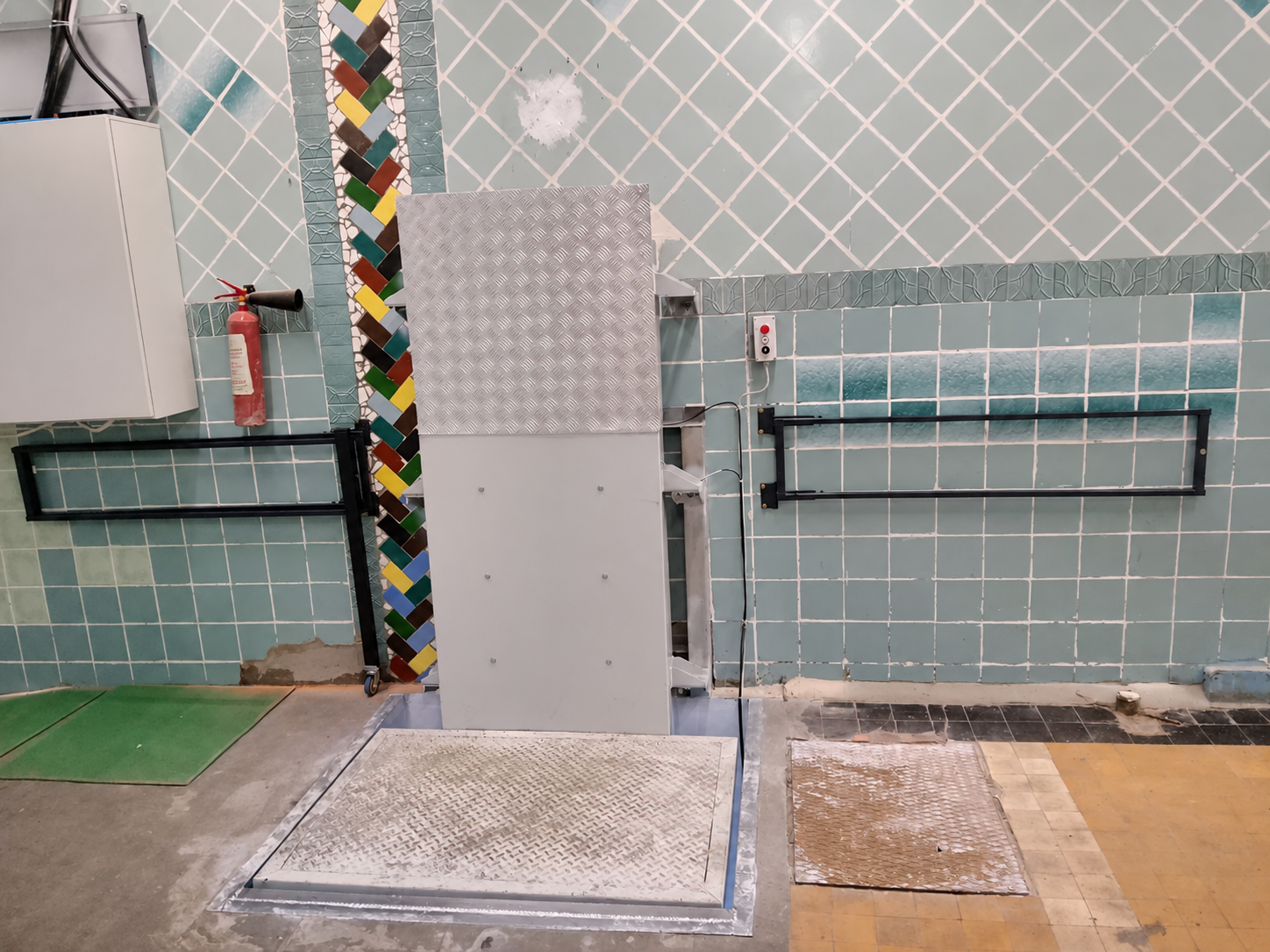

Overall view of an ASPAR freight platform for pallets
