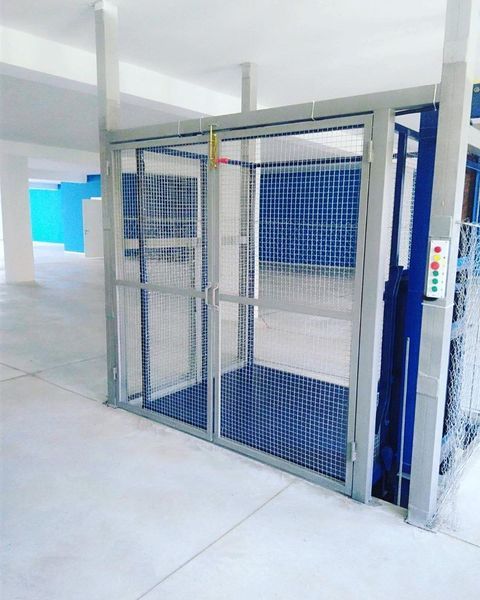

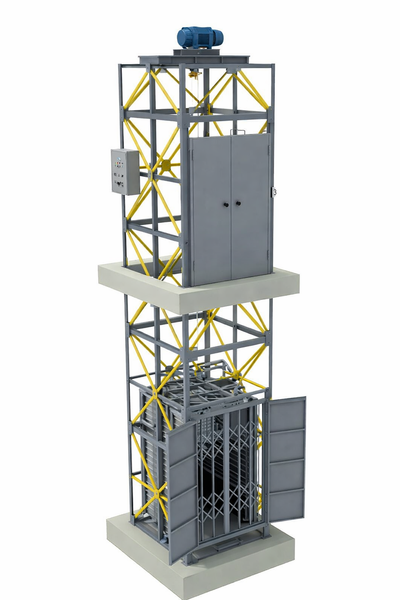

ASPAR HS 3000 is a shaft vertical lift platform for barrier-free movement between levels. The verified configuration provides 250 / 400 / 500 kg, depending on configuration, and a lifting height up to 3 m.
Confirmed specifications
| Load capacity | 250 / 400 / 500 kg, depending on configuration |
| Maximum lifting height | up to 3 m |
| Power supply | 230 V, 1-phase or 400 V, 3-phase, depending on configuration |
| Control voltage | 24 V |
| Installation | with a pit or without one, using a ramp |
The listed values apply to this model or the explicitly stated configuration. Site-dependent parameters are confirmed during the technical assessment.
When to consider this model
The shaft creates a protected travel path. The number of stops, entry arrangement, doors, platform size and shaft design are determined after measurements and a review of the building layout.
What to provide for calculation
required lifting height and number of stops; expected load; entry arrangement; opening and installation-area dimensions; available power supply; photos or a plan of the site.
Related solutions and next step
For application context, see the verified implementation example, warehouse and logistics solutions and production and workshop solutions. Conditions for installation and commissioning are agreed for the specific site; the main criteria are summarised in the cargo-lift selection guidance. Send the input data through the contact page to verify the configuration.
