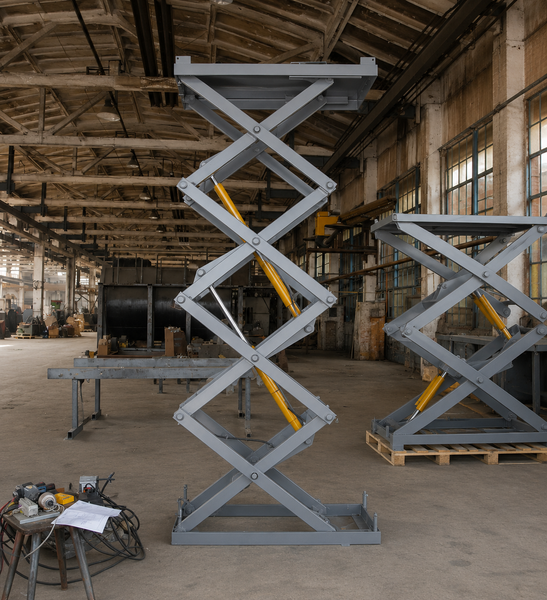

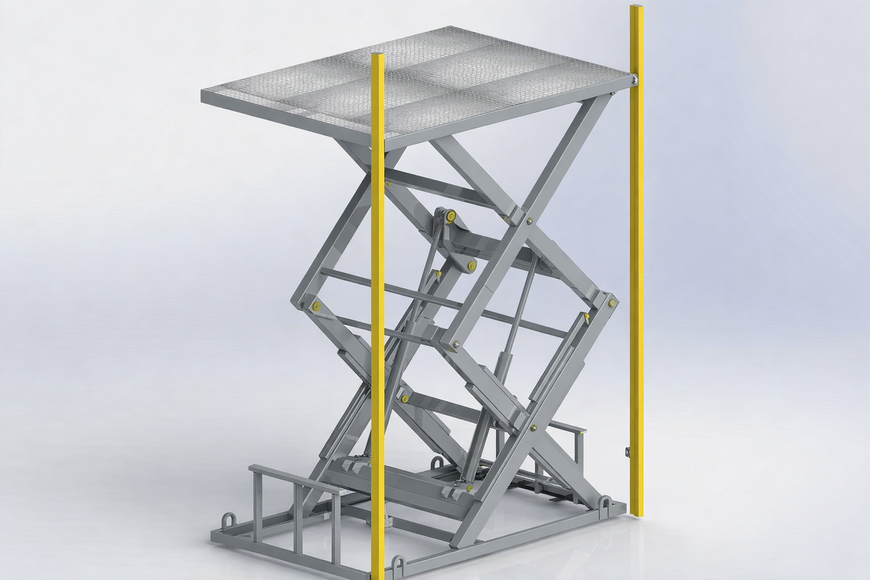

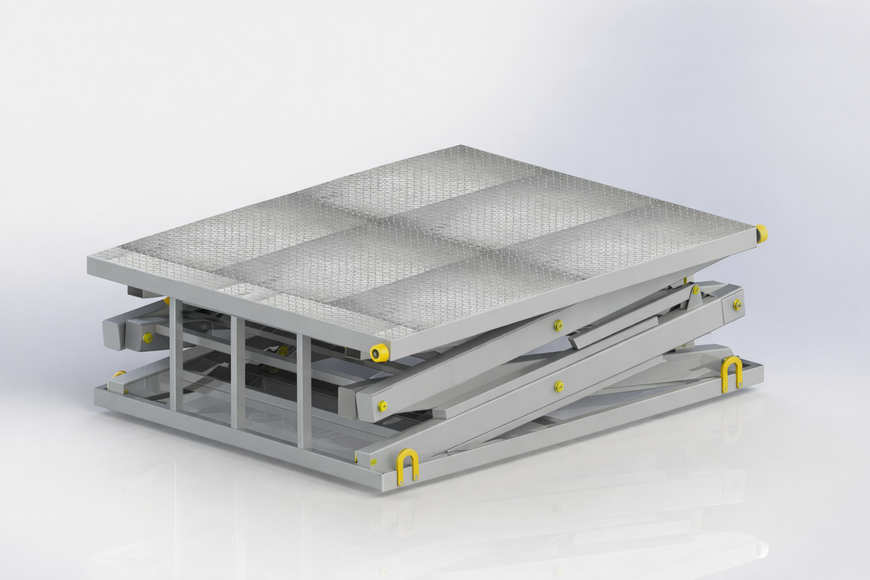

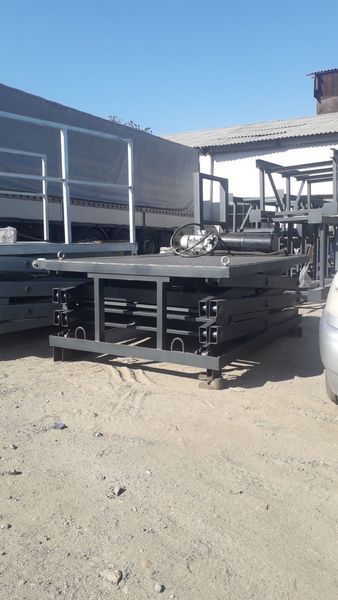

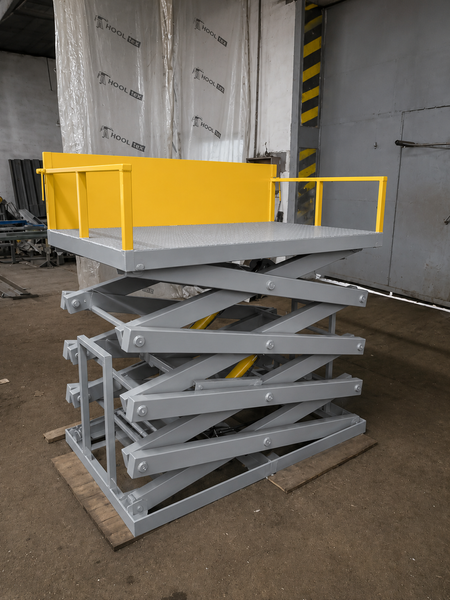

ASPAR GHL3000 is a hydraulic double-scissor lift table with a 3000 kg load capacity and a platform from 2500 × 2000 mm. For this model, the working lifting height starts from 3 m, while the exact maximum is determined by engineering calculation.
Confirmed specifications
| Load capacity | 3000 kg |
|---|---|
| Load type | Uniform / permitted centre offset |
| Minimum lifting height | from 3 m |
| Maximum lifting height | determined by engineering calculation |
| Minimum height | 0.50–0.65 m |
| Platform size | from 2500 × 2000 mm |

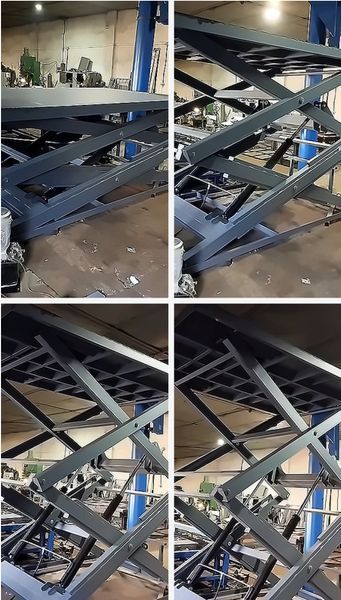

| Mechanism type | Double scissor mechanism (2 scissor pairs) |
| Drive type | Hydraulic |
| Power supply | 380V |
| Motor power | 4.0–7.5 kW |
| Installation type | Floor-mounted / pit-mounted |
| Finish | Industrial powder coating |
The maximum lifting height must not be inferred from the model name or another Product. It is confirmed by engineering calculation for the specific configuration.
When to consider GHL3000
The model is considered for heavy loads up to 3000 kg and tasks with a working lifting height from 3 m. The double-scissor geometry, load centre and duty cycle are assessed together.
What to provide for calculation
- load weight, dimensions and centre position;
- required working height and platform size;
- cycle frequency and operating mode;
- measurements and photos of the installation area;
- installation type and available power supply.
Related solutions and support
See warehouse and logistics solutions, production and workshop solutions and the scissor lift table category. Installation and commissioning conditions are agreed separately.
Next step
Send the input data through the contact page for an engineering review of GHL3000 and configuration calculation.
