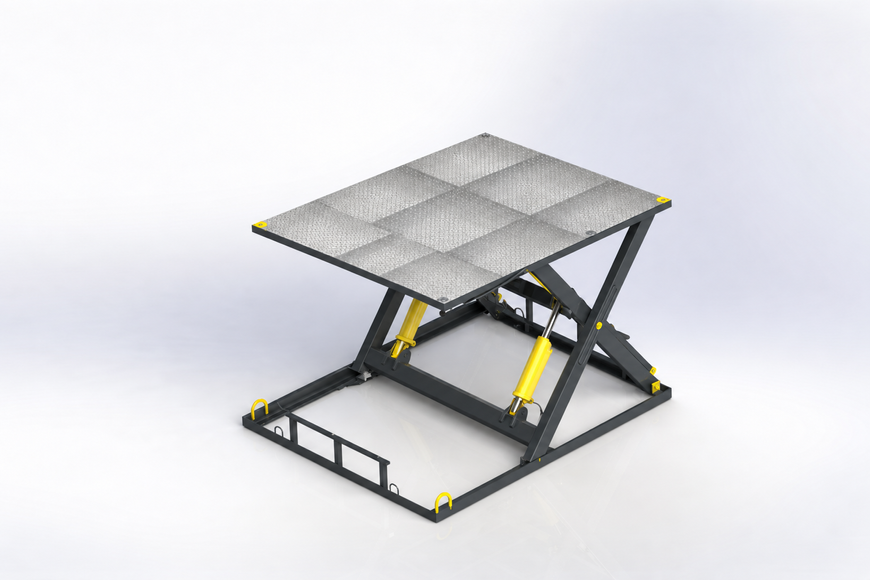

The ASPAR heavy-duty industrial hydraulic scissor lift table has a 10000 kg load capacity. It is engineered for large loads, assemblies and process operations that require a reinforced structure and project-specific assessment of the load centre.
Specifications and configuration options
Parameters of this scissor lift table. Other dimensions, options and compatible combinations are agreed after checking the load, duty cycle and installation site. Maximum values cannot automatically be combined.
Load and dimensions
| Load capacity | 10000 kg |
|---|---|
| Load type | uniform / calculated for the specific centre of gravity |
| Maximum lifting height | up to 1.60 m, adjustable |
| Minimum height | 0.45-0.60 m |
| Platform dimensions | from 3500 x 3000 mm |
Drive and installation
| Mechanism | single-scissor |
|---|---|
| Drive | hydraulic |
| Power supply | 380 V |
| Motor power | 7.5-15 kW, depending on the project |

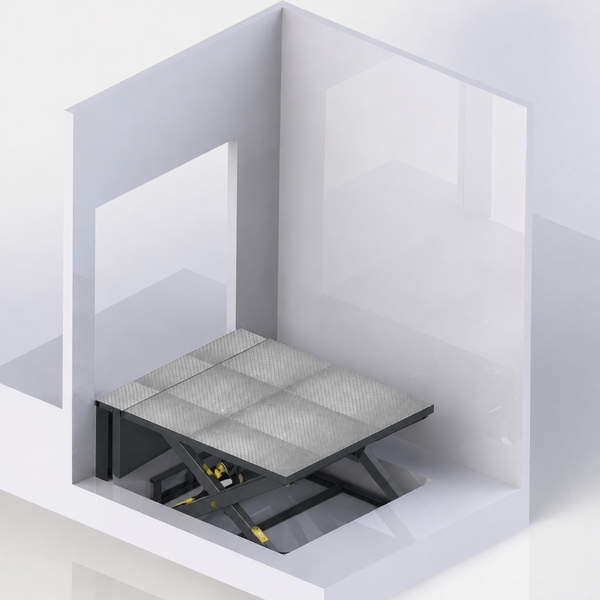

| Installation | surface-mounted / in a pit |
| Finish | industrial anti-corrosion coating |
Equipment and options
| Core components | Platform, lower frame, scissor mechanism, connecting elements, hydraulic power unit and cylinders |
|---|---|
| Controls | Control stations; their scope and location are agreed |
| Guarding and protection | Guarding and safety interlocks on guards as agreed options |
| Design options | Galvanised pins, frame reinforcement and speed control; compatibility is checked |
| Materials and finish | Stainless steel construction or platform as an option; colour by agreement |
| Integration | Integration with an existing automation system can be agreed |
| Backup power | Discussed separately; autonomy and cycle count agreed for the load |
| Warranty | From 1 year; terms defined for the project |
Intended use
Consider the model for raising heavy loads to a working height in manufacturing and warehouse processes. It is a scissor lift table, not an automatic substitute for an inter-floor freight lift.
Configuration and limits
The platform starts from 3500 x 3000 mm. Final dimensions, heights, motor power, structural configuration and surface-mounted or pit installation are defined after engineering assessment.
Base equipment
- Platform
- Lower frame
- Scissor mechanism
- Connecting components
- Hydraulic power unit
- Hydraulic cylinders
- Control stations
The equipment scope and execution are specified in the agreed order configuration.
Options for your application
- Guardrails
- Galvanised pins
- Guardrail safety automation
- Speed adjustment
- Frame reinforcement
- Stainless-steel construction or stainless-steel platform
- Integration with an existing automation system
Availability and compatibility of options are checked for the specific configuration. They are not automatically included in the base equipment.
Backup power is discussed separately: to complete movement or perform several lifting and lowering cycles. The operating mode and number of cycles are agreed for the specific equipment and load.
Inputs for calculation
load weight, dimensions and centre of gravity; required minimum and upper height; platform size; cycle frequency; installation location and method; environmental conditions.
An implemented scissor table project
Borshchiv: an ASPAR hydraulic scissor table with a 2.5 t load capacity. This is a different configuration, not the 10000 kg model on this page.
Related solutions and resources
Frequently asked question
Is this scissor lift table a standard model with fixed dimensions?
No. The model load capacity is 10000 kg, while the platform, heights, drive and structural execution are finalised against the technical brief.
