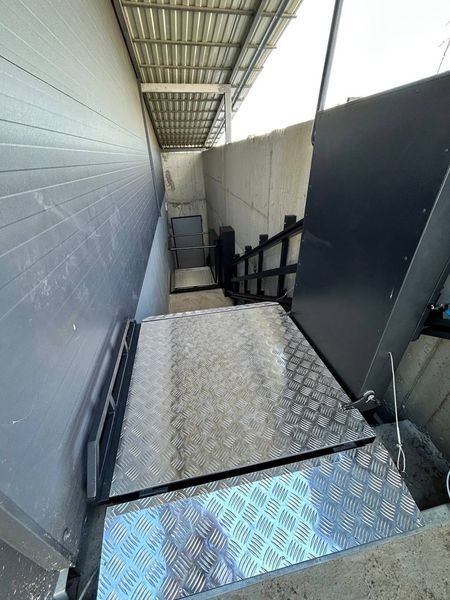

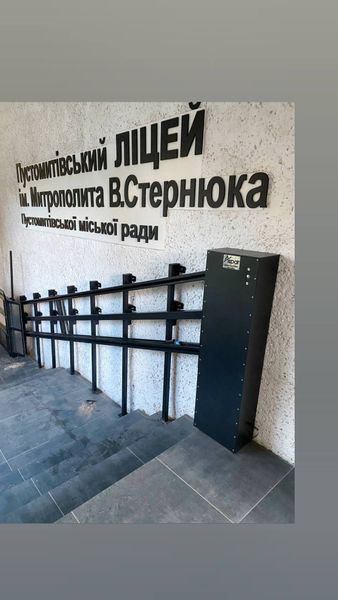

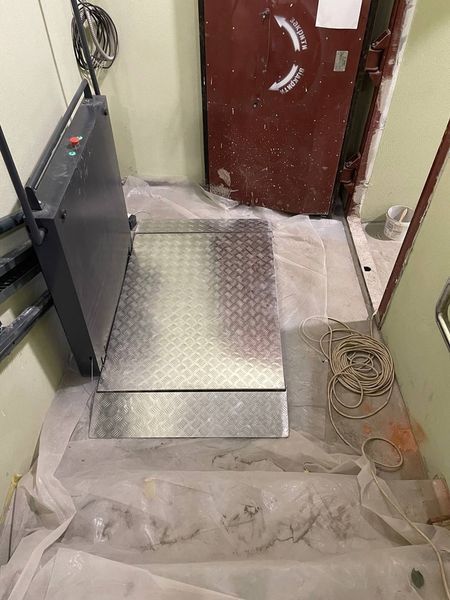

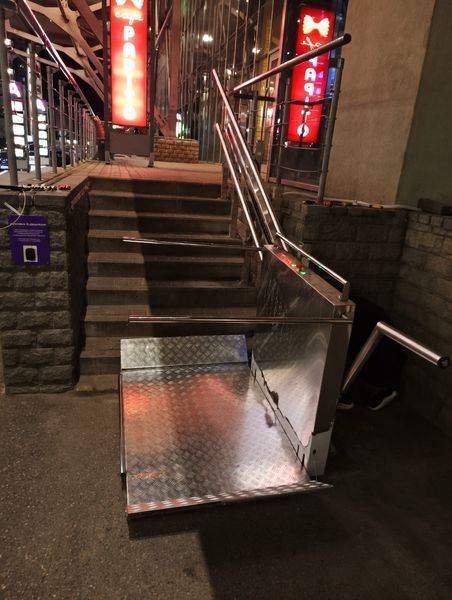

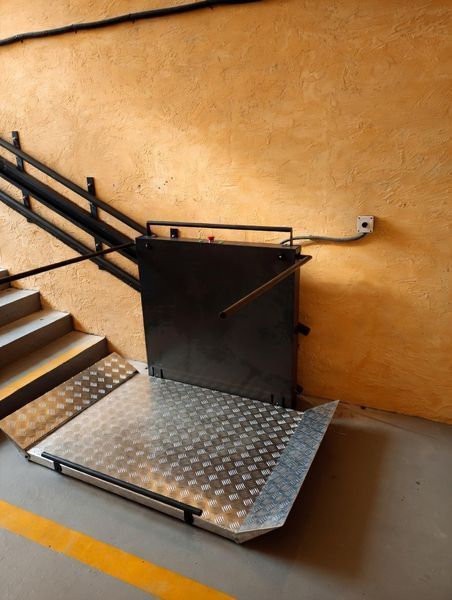

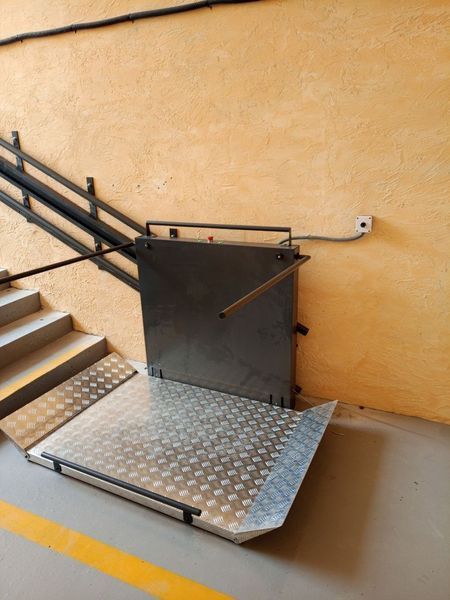

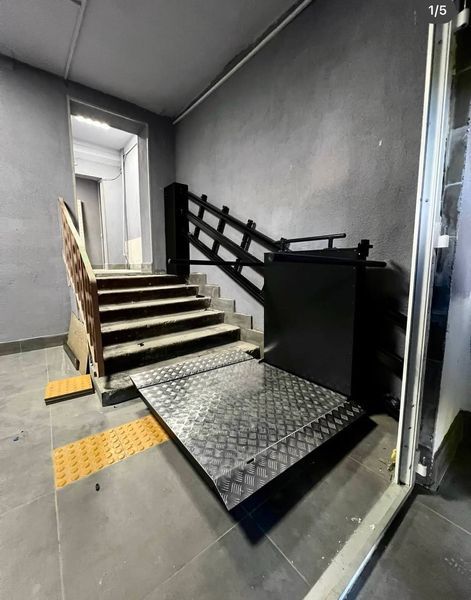

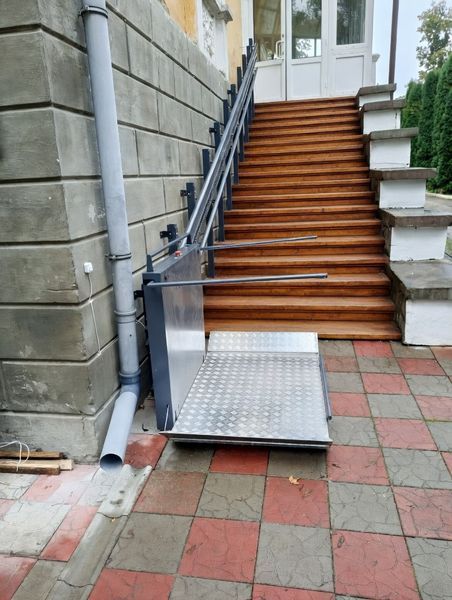

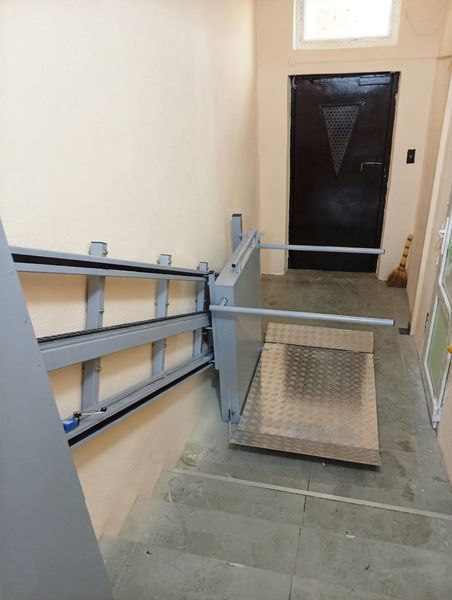

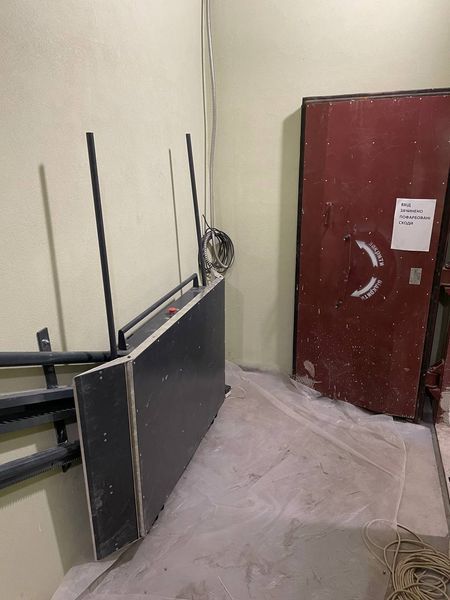

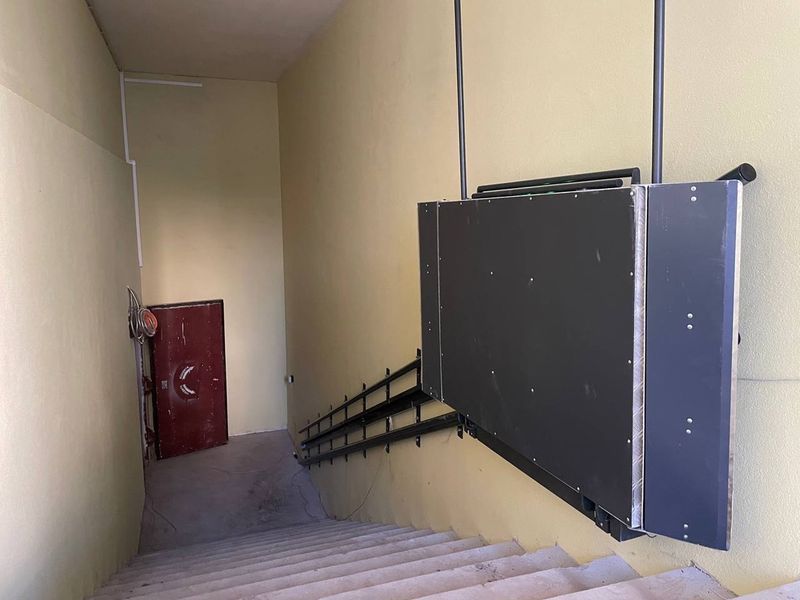

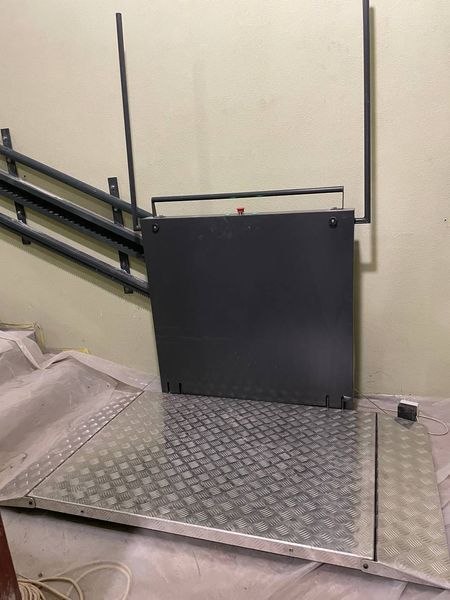

ASPAR EMD 200-3.0 is an inclined platform for moving a wheelchair user along a straight stair flight. Its load capacity is up to 200 kg; the folded platform keeps the staircase available for passage.
Model specifications
| Load capacity | up to 200 kg |
| Stair flight length | up to 3 m |
| Material | stainless steel |
| Folding | manual |
| Power supply | 220 V |
| Control voltage | 24 V |
| Travel speed | approximately 0.1-0.15 m/s |
The listed values apply to this model or the explicitly stated configuration. Site-dependent parameters are selected for the specific installation.
When to consider this model
The model is considered for residential and public buildings where the level difference follows a straight stair flight. The exact travel path, fixings, landings and safety clearances are determined from stair measurements.
What to provide for calculation
photos and measurements of the stair flight; length, width, angle and level difference; landing dimensions; fixing conditions; available power supply; operating conditions.
Related solutions and next step
For application context, see the implementation example, solutions for architects and designers and solutions for schools and kindergartens. Conditions for installation and commissioning are agreed for the specific site; the main criteria are summarised in the accessible-lift selection guidance. Send the input data through the contact page to select the configuration.
