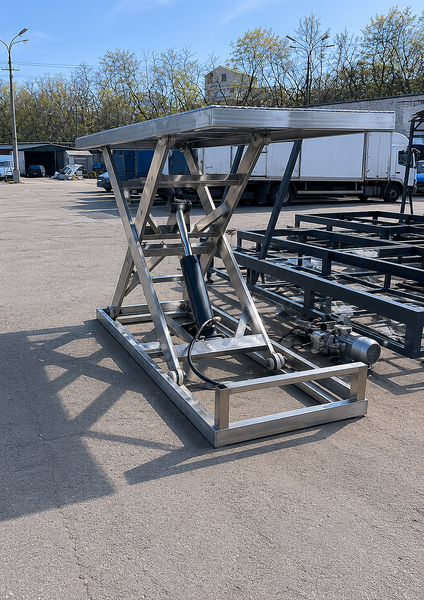

The ASPAR hydraulic scissor lift table has a 5000 kg load capacity, lifting height up to 1.6 m and a platform from 3000 × 2500 mm. Selection requires checks of the load weight and centre, duty cycle, platform geometry, installation and power supply.
Specifications and configuration options
Parameters of this scissor lift table. Other dimensions, options and compatible combinations are agreed after checking the load, duty cycle and installation site. Maximum values cannot automatically be combined.
Load and dimensions
| Load capacity | 5000 kg |
|---|---|
| Load type | Uniform / permitted centre offset |
| Maximum lifting height | up to 1.6 m |
| Minimum height | 0.40–0.50 m |
| Platform size | from 3000 × 2500 mm |
Drive and installation
| Mechanism type | Single-scissor |
|---|---|
| Drive type | Hydraulic |
| Power supply | 380V |
| Motor power | 4.0–7.5 kW |

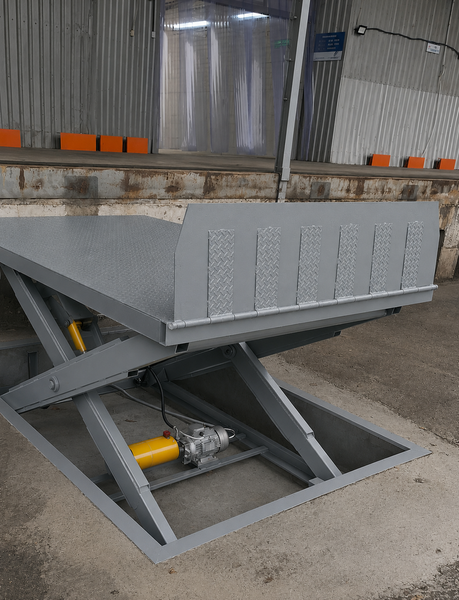

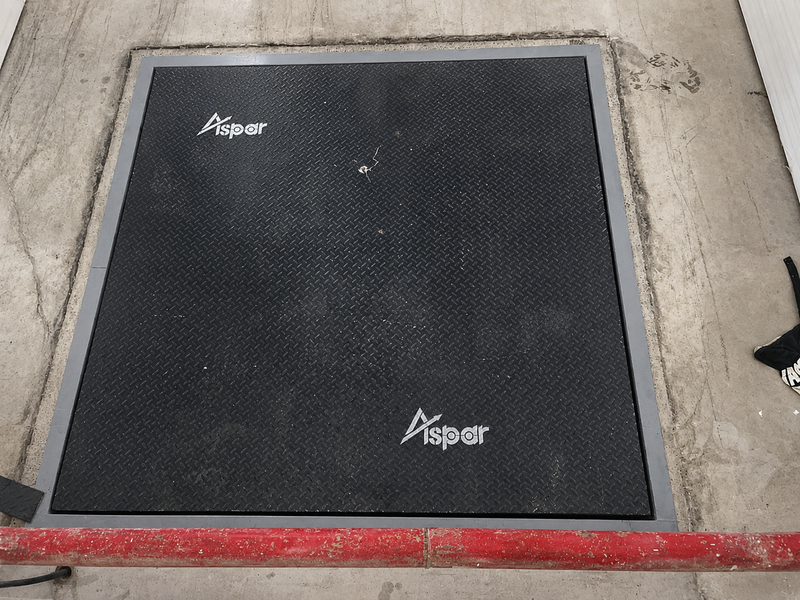

| Installation type | Floor-mounted / pit-mounted |
| Finish | Industrial powder coating |
Equipment and options
| Core components | Platform, lower frame, scissor mechanism, connecting elements, hydraulic power unit and cylinders |
|---|---|
| Controls | Control stations; their scope and location are agreed |
| Guarding and protection | Guarding and safety interlocks on guards as agreed options |
| Design options | Galvanised pins, frame reinforcement and speed control; compatibility is checked |
| Materials and finish | Stainless steel construction or platform as an option; colour by agreement |
| Integration | Integration with an existing automation system can be agreed |
| Backup power | Discussed separately; autonomy and cycle count agreed for the load |
| Warranty | From 1 year; terms defined for the project |
When to consider this stationary scissor lift table
The model is intended for heavy industrial loads up to 5000 kg. A single-scissor mechanism is not selected by weight alone: platform size, load centre and duty cycle must also be checked.
Base equipment
- Platform
- Lower frame
- Scissor mechanism
- Connecting components
- Hydraulic power unit
- Hydraulic cylinders
- Control stations
The equipment scope and execution are specified in the agreed order configuration.
Options for your application
- Guardrails
- Galvanised pins
- Guardrail safety automation
- Speed adjustment
- Frame reinforcement
- Stainless-steel construction or stainless-steel platform
- Integration with an existing automation system
Availability and compatibility of options are checked for the specific configuration. They are not automatically included in the base equipment.
Backup power is discussed separately: to complete movement or perform several lifting and lowering cycles. The operating mode and number of cycles are agreed for the specific equipment and load.
What to provide for calculation
- load weight, dimensions and centre position;
- lifting height and platform size;
- cycle frequency and operating mode;
- measurements and photos of the installation area;
- installation type and available power supply.
An implemented scissor table project
Borshchiv: an ASPAR hydraulic scissor table with a 2.5 t load capacity. This is a different configuration, not the 5000 kg model on this page.
View project photos and detailsRelated solutions and support
See warehouse and logistics solutions, production and workshop solutions and the scissor lift table category. Installation and commissioning conditions are agreed for the site.
Next step
Send the input data through the contact page so ASPAR can check this scissor lift table and calculate the required configuration.
