ASPAR / EQUIPMENT

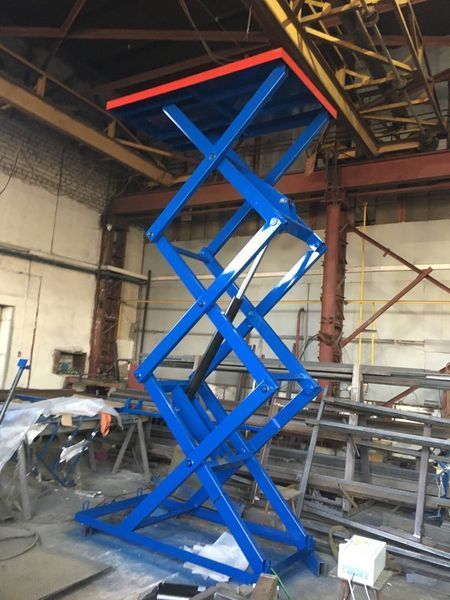

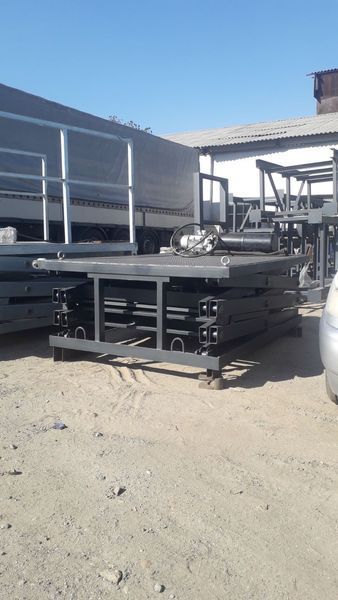

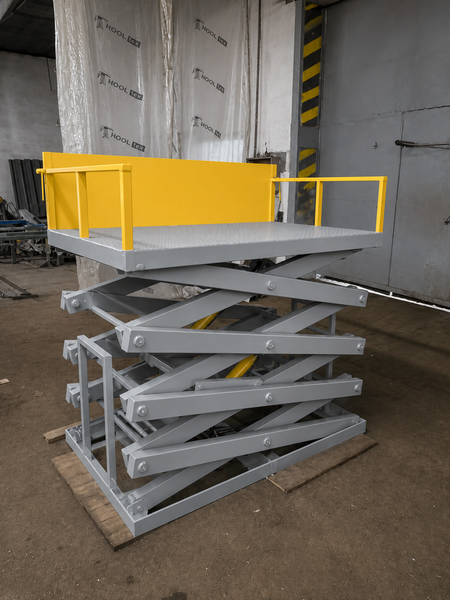

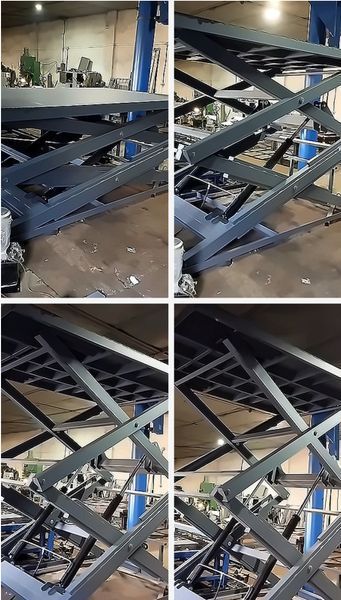

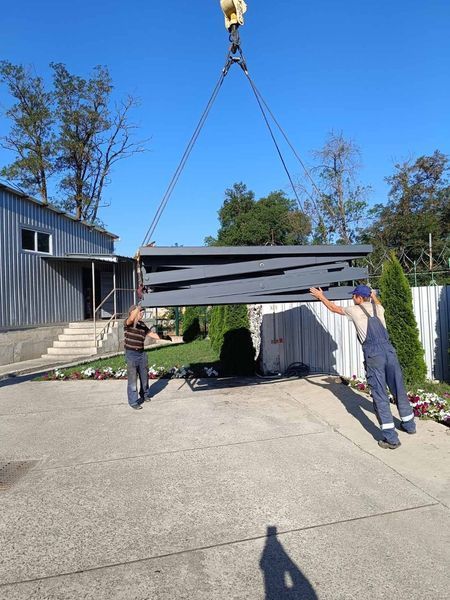

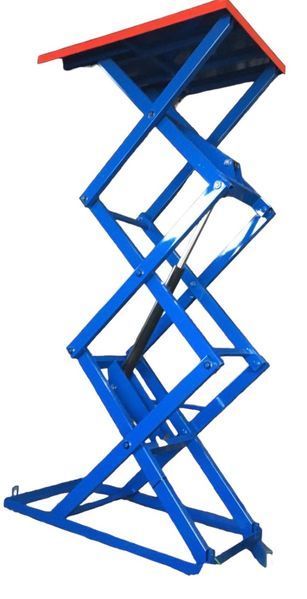

Hydraulic multi-scissor lift
A platform for travel between levels. Positioning, access and protective measures are agreed for the specific application.
Specifications and configuration
Current catalogue parameters, not fixed specifications of the illustration. Parameter combinations and the configuration for an order are agreed separately.
Load and geometry
| Load capacity | 500–10,000 kg |
|---|---|
| Lifting height | Up to 8 m |
| Minimum height | 3 m |
| Platform | From 2000 × 1500 mm |
Construction and power
| Mechanism | Multi-scissor |
|---|---|
| Drive | Hydraulic |
| Power supply | 380 V |
| Installation | Surface-mounted / in pit |
Selection requirements
| Load | Mass, dimensions and centre of gravity |
|---|---|
| Operating conditions | Cycle frequency and operating conditions |
| Installation data | Site measurements or photos, installation method and available power |
Main component diagram — open image
Equipment family illustration, not an installation or dimensioned drawing.
Example configuration. Lifting height, load capacity and dimensions are determined for each order.
Standard equipment
- Platform
- Base frame
- Scissor mechanism
- Connecting components
- Hydraulic power unit
- Hydraulic cylinders
- Control stations
The guarding shown in the diagram is an optional extra. Protective measures are determined for the specific application.
Optional equipment
Preparing for installation
- Prepare the installation area in accordance with ASPAR’s site preparation requirements, where site conditions require it.
- Provide the power supply in accordance with ASPAR’s requirements.
- Provide access to the installation area.
Delivery, installation and whether they are included in the price are determined by the contract with the customer.
Individual price calculation. The final equipment price is determined after confirming the required technical parameters, dimensions, load capacity, lifting height, configuration, installation conditions and site requirements.
Applications for a multi-scissor lift table
This solution is considered for warehouses, production facilities, logistics areas and other sites where goods need to move vertically beyond the lift range of a basic scissor configuration.
Parameters of the current catalogue configuration
The illustration above shows an example from this equipment family. The catalogue parameters below are not fixed specifications of the illustrated configuration; the configuration for each order is agreed separately.
The multi-scissor lift table specifications list a 500–10,000 kg capacity, lift height up to 8 m, minimum height of 3 m, platform from 2,000 × 1,500 mm, hydraulic drive, 380 V power supply and surface-mounted or pit installation. Platform size, capacity, installation arrangement and working height are selected for the specific load and site.
For a quotation, send
- Load weight, dimensions and centre of gravity.
- Required lifting height, platform working area and available installation space dimensions.
- Site photos or measurements, preferred installation type and available power supply.
- Cycle frequency and operating conditions.
Solutions, installation and service
See solutions for warehouses and logistics and production facilities, as well as the scissor lift table category. ASPAR provides installation and service maintenance.
See also: Scissor lift tables.
Equipment in operation
ASPAR double-scissor lift table - series example. The video is an operating example from this equipment series. It does not confirm the capacity, travel height, dimensions or configuration of this model; these are agreed for each order. A double-scissor structure is shown as a series example; the number of scissor stages for this product is specified for the order.
Example of ASPAR multi-scissor equipment in operation
A completed ASPAR multi-scissor lift project in Kyiv
This video shows a separate ASPAR project: a multi-scissor goods lift in an industrial building. It is a related example of scissor lifting equipment, not a demonstration of this specific product variant. The design, load capacity, lifting height and configuration for your application are agreed individually.
Select a configuration for your site
Tell us about your task and installation area. We will agree the equipment configuration and preparation requirements.
