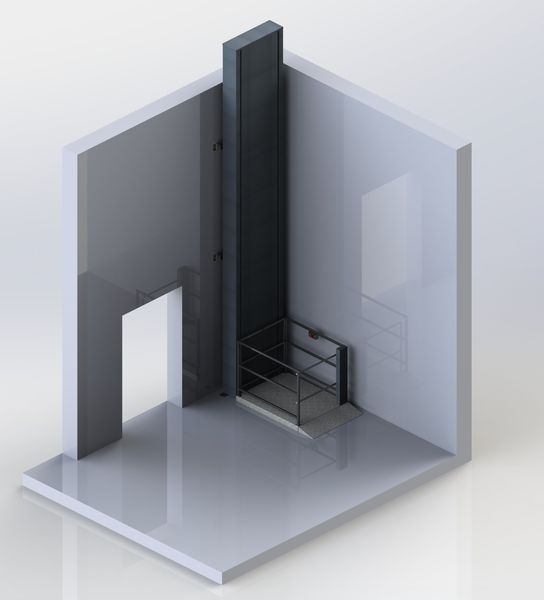

Vertical platform lift
The ASPAR chain-driven vertical platform lift moves people with disabilities and other users with reduced mobility between levels. It uses a chain-driven electromechanical system. Current catalogue configurations offer straight or side entry; stainless steel construction is available. Lifting height and load capacity are agreed for the particular configuration.
Specifications and configuration options
Capabilities of the chain-driven lift family, not the equipment supplied with every unit. Parameters, compatible combinations and scope of supply are agreed for each project. The brief product specifications describe one particular configuration.
Key specifications
| Rated load | From 250 kg; selected for the application |
|---|---|
| Lifting height | Up to 10 m, depending on design and project |
| Platform dimensions | Customised to the available space and user requirements |
| Lifting speed | 0.10–0.15 m/s; exact value specified for the project |
| Number of stops | 2 or more, by agreement |
| Entry and exit | Through access, same-side access or 90° access |
Construction and installation
| Drive | Electromechanical chain drive |
|---|---|
| Input power | 220 or 380 V, depending on configuration |
| Control circuit | 24 V |
| Materials | Painted steel; stainless steel and aluminium components depending on configuration |
| Colour | To the customer's preference |
| Installation location | Indoors or outdoors with a suitable configuration |
| Pit | Depends on design; where a pit is not possible, an access ramp bridges the level difference |
| Enclosure and doors | Platform, shaft and door configuration agreed for the site |
Controls, safety and options
| Controls | Push-button stations; radio remote, PC or smartphone control as agreed options |
|---|---|
| Safety devices | Safety frame and other protective devices according to the design. The final list is defined for the project |
| Access control | Optional fingerprint, password and other activation methods. Does not replace protective devices |
| Additional protection | Vandal-resistant options and increased dust/water protection by agreement; IP rating specified for each project |
| Backup and signalling | Backup power and audible/visual signalling options agreed separately |
| Warranty | From 1 year; terms depend on the project |
Certification. Voluntary certification of serially manufactured ASPAR vertical platform lifts for persons with disabilities is documented by certificate UA.PN.191.4072-26 (27 October 2026 to 26 October 2027). Applicability to the selected configuration and the accompanying documents are confirmed when the order is agreed. Documents and certification scope.
Main component diagram — open image
Equipment family illustration, not an installation or dimensioned drawing.
Example configuration. Lifting height, load capacity and dimensions are determined for each order.
Standard equipment
- Aluminium platform
- Guide rails / cantilever support column
- Control cabinet
- Motor
- Shafts and sprockets
- 24 V control stations
- Limit switches
24 V refers to the control stations. Internal components are not shown in the exterior view.
Optional equipment
Preparing for installation
- Prepare the installation area in accordance with ASPAR’s site preparation requirements, where site conditions require it.
- Provide the power supply in accordance with ASPAR’s requirements.
- Provide access to the installation area.
Delivery, installation and whether they are included in the price are determined by the contract with the customer.
What happens during a power outage?
When equipped with an optional UPS, the lift can complete its travel and perform several ascents and descents without mains power. The required backup operation and number of cycles are agreed individually with the customer.
Completed ASPAR project
Pushcha-Vodytsia
An example of a chain-driven lift in a different configuration: stainless steel. The photograph and specifications of this project do not describe the platform configuration above.
View project →The standard specifications in this card describe the referenced straight-entry catalogue configuration. They do not define universal specifications for every configuration in the family.
Lifting height without an artificial family limit
The current catalogue includes configurations up to 2 m and up to 3 m. These are the specifications of those cards, not the maximum height of every chain platform. Some configurations can lift above 5 m. Suitability of the construction, load capacity and installation conditions must be agreed separately.
Load capacity and differences between configurations
The four current catalogue cards state 250 kg. The completed Romny project also has a load capacity of 250 kg. These values belong to specific configurations and do not establish one load rating or an upper capacity limit for the whole family.
Straight and side entry
Individual catalogue configurations have the following specifications:
- 90° side entry: lifting height up to 2 m, 250 kg, platform up to 1400 × 1100 mm.
- Straight entry: lifting height up to 3 m, 250 kg, platform from 900 × 1250 mm.
- 90° side entry: lifting height up to 3 m, 250 kg, platform up to 1400 × 1100 mm.
The three configurations listed here specify a 220 V / 380 V supply and low-voltage 24 V controls. These are specifications of individual configurations, rather than a universal family specification. Other configurations can provide a lifting height of more than 5 m; height, load capacity and equipment are agreed separately.
Existing cards include straight and 90° side-entry configurations. They differ in access layout and published platform dimensions. Entry and exit directions must be agreed against the lower and upper levels and the user route.
Stainless steel option
Stainless steel construction is available. Please confirm component scope, finish and operating conditions when agreeing the order. Steel grade and any special properties must be agreed for the particular equipment scope.
For a quotation, send
- Height difference, number of levels and landing locations.
- Available installation space dimensions and entry and exit directions.
- Site photos, measurements or a plan to assess the user route.
- Expected load, available power supply and operating conditions.
Price and work scope are agreed after reviewing these inputs.
ASPAR platform operation video
Completed projects
The shelter project in Romny uses a stainless steel chain lift with a 1800 mm lifting height, a 1250×950 mm platform and load capacity 250 kg. These values belong to that project. The operation video above is a separate example and is not presented as footage of the Romny installation.
