Please note: The displayed price represents the basic product configuration with minimum technical specifications. Each ASPAR order is calculated individually according to the required parameters, configuration and specific site conditions.
ASPAR manufactures double scissor lift tables for vertical material handling at industrial, warehouse and logistics facilities. A double-scissor mechanism provides greater lifting height than a standard single-scissor lift table.
Specifications and configuration options
Parameters of this scissor lift table. Other dimensions, options and compatible combinations are agreed after checking the load, duty cycle and installation site. Maximum values cannot automatically be combined.
Load and dimensions
| Load capacity | 500 kg |
|---|---|
| Load type | Uniform |
| Maximum lifting height | up to 2 m |
| Minimum height | 0.30–0.45 m |
| Platform dimensions | from 2000 × 1500 mm |
Drive and installation
| Mechanism type | Double scissor |
|---|---|
| Drive type | Hydraulic |
| Power supply | 380V |
| Motor power | 1.5–3.0 kW |
| Installation type | Surface-mounted / in pit |
| Finish | Powder coating (RAL 7045 + signal elements) |
Selection and order requirements
| Custom dimensions | Platform dimensions and closed height are agreed for the load and installation site. |
|---|---|
| Duty cycle | Operating frequency and conditions are defined in the technical brief. |
| Installation requirements | Site measurements, photos and available power supply details are required. |
| Warranty | From 1 year. Terms depend on the project. |

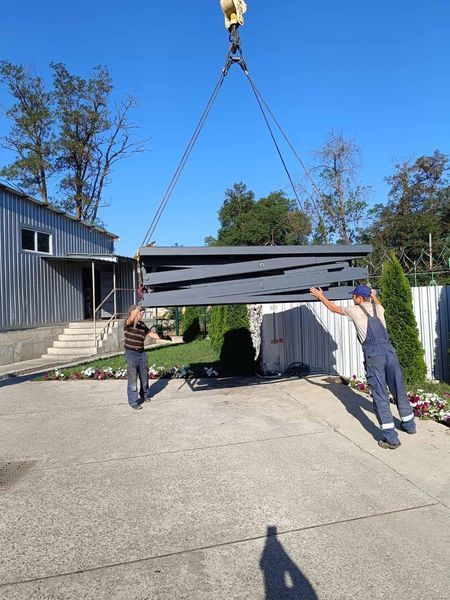

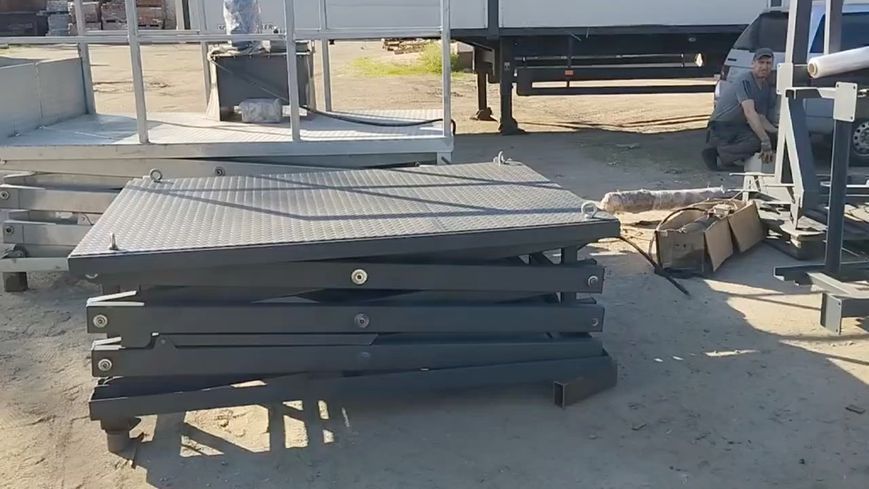

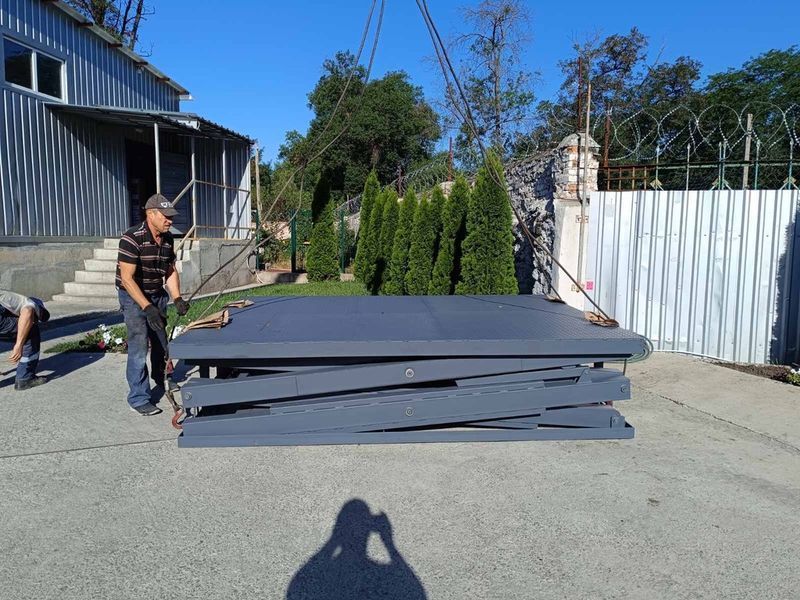

500 kg double-scissor lift table
The shown configuration has a 500 kg load capacity, lifting height up to 2 m and a platform from 2000 × 1500 mm. The hydraulic drive, platform dimensions, closed height and installation method are selected around the load, duty cycle and site conditions.
Applications
A double scissor lift table is used to move goods between levels, to workstations and into process areas. It is considered for warehousing and logistics and manufacturing and workshops, where stable vertical travel and a platform matched to the load are required.
Information for selection
- load weight, dimensions and distribution;
- required lifting height and platform size;
- cycle frequency and operating conditions;
- site measurements, photographs and available power supply.
Manufacture and installation
ASPAR prepares the configuration for the task, agrees installation conditions and provides installation and commissioning. Explore related equipment in the scissor lift table category.
Next step
Send the input data through ASPAR contacts to receive a configuration quotation.
See also: Scissor lift tables.
ASPAR double-scissor lift table — series example. The video is an operating example from this equipment series. It does not confirm the capacity, travel height, dimensions or configuration of this model; these are agreed for each order.
